Release Notes: Goobi 2.1.

Open Source Workflow Software.

intranda GmbH / Digitisation / Goobi / Goobi Release Notes / Release Notes: Goobi 2.1

User interface

Goobi user interface expanded and given fresh look with in-line help texts

Goobi 2.1 came with a redesigned GUI that is not only more user-friendly and up-to-date but also featured a host of new functions. Many of these were located in roughly the same place and were based on the same operating principles. This meant that users could familiarise themselves very quickly with the new version.

Goobi Production 2.1 – List of processes
Goobi Production 2.1 – List of tasks

Users can display the new inline help function at any time to deal with questions that might arise when using Goobi.

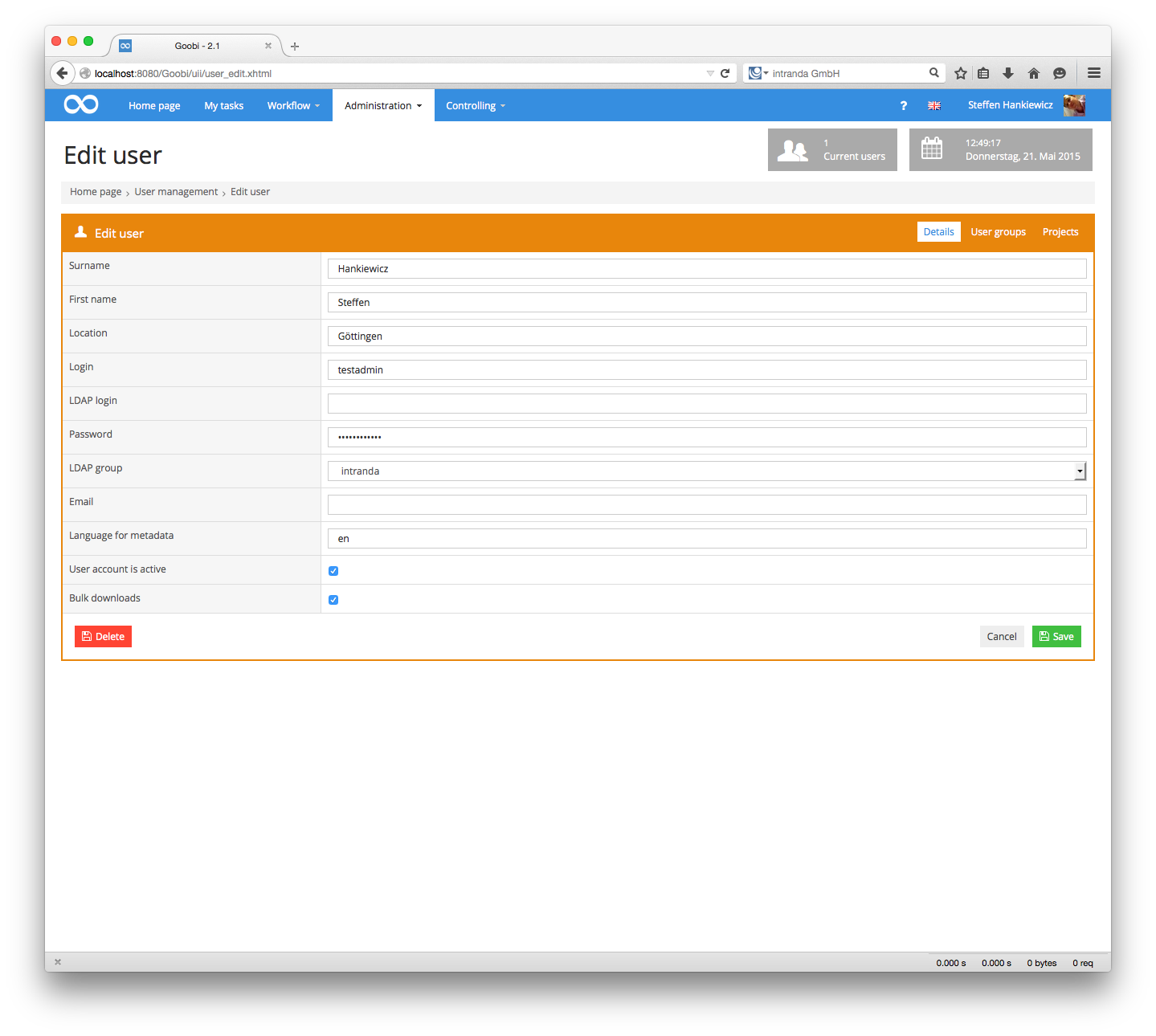

Goobi Production 2.1 – Editing a user

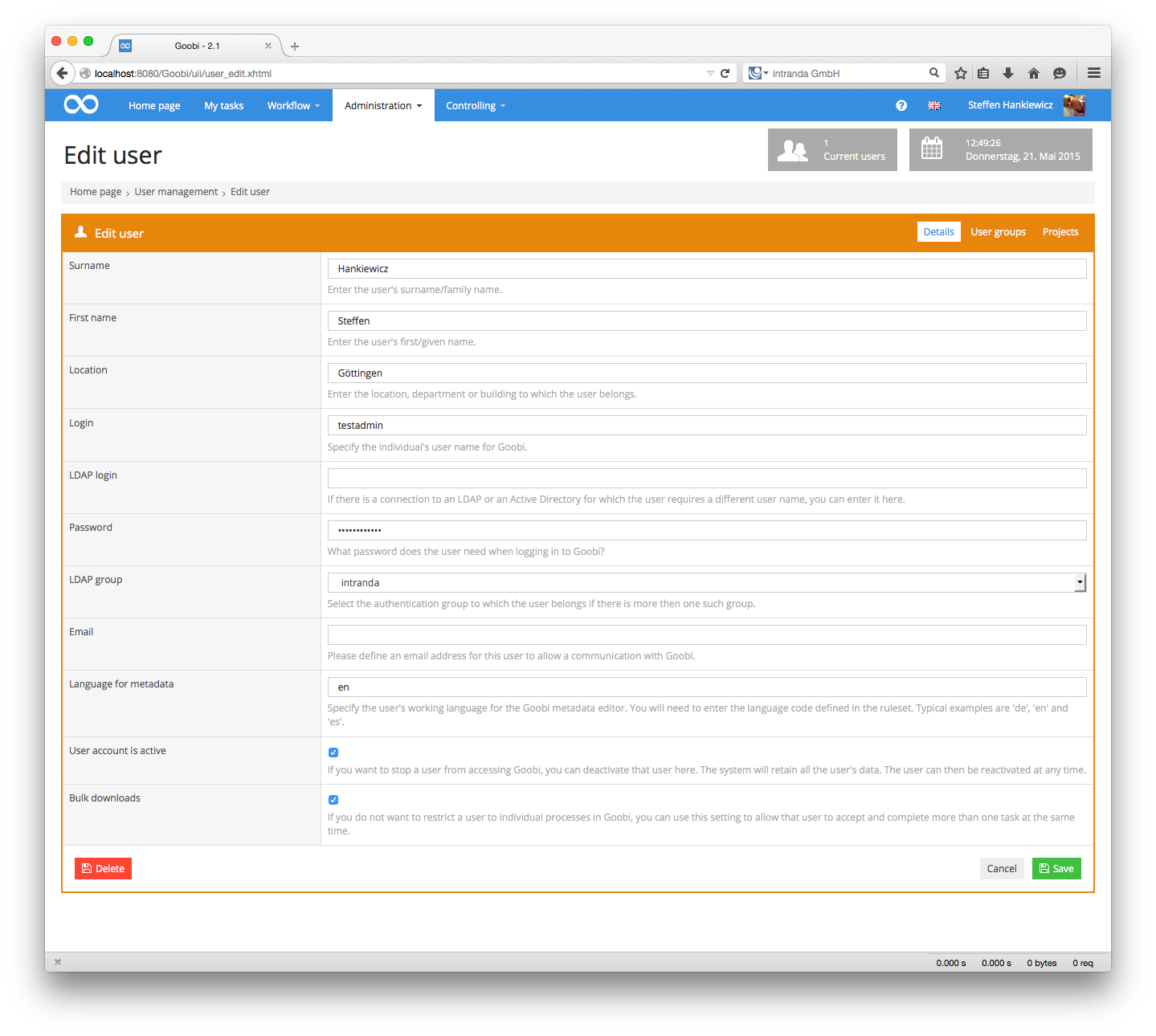

Goobi Production 2.1 – Editing a user with embedded help function

Option to switch user interface

To ensure full reverse compatibility with earlier Goobi user scenarios, version 2.1 included an option to switch at any time between the new and old GUI. This function was designed to help users move smoothly to the new interface and compare it whenever necessary with the old design dating back to 2005.

Clearer presentation of allocation of users and user groups to tasks

The allocation of users and user groups to specific tasks within the Goobi workflow became much clearer in version 2.1. Rather than managing users and user groups individually, they can now be shown in a more compact form that gives a better overview of individually authorised users.

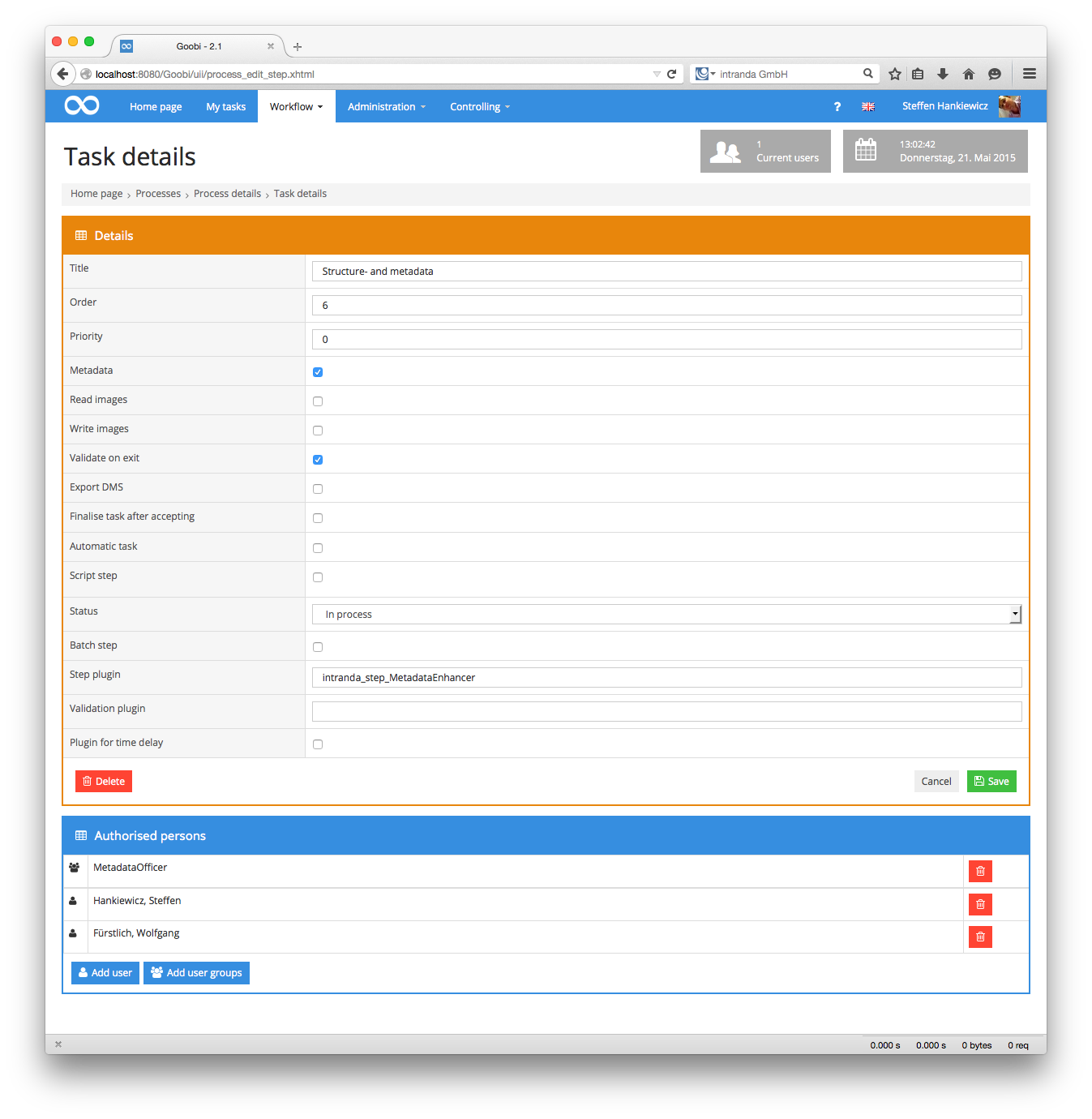

Goobi Production 2.1 – Allocation of users and user groups to workflow steps

Support for Gravatar

Goobi version 2.1 included support for Gravatar as a central user icon display service. The application allows any user to establish a cross-platform gravatar simply by providing an email address. In Goobi, this can be used to display responsibilities or for internal communications.

Goobi Production 2.1 – Embedding Gravatar simply by entering an email address

Enhanced browser compatibility

The classic user interface in Goobi version 2.1 was fully compatible with Internet Explorer 11.

Importing data

Improved configurability for data import via OPAC requests

Version 2.0 offered a plugin interface for importing bibliographical data from a catalogue. This made it possible to add a range of catalogue types as plugins. With the advent of version 2.1, the catalogue request field could be configured separately for each project. For each project, it is now possible to specify a different field (e.g. barcode) as the default when importing.

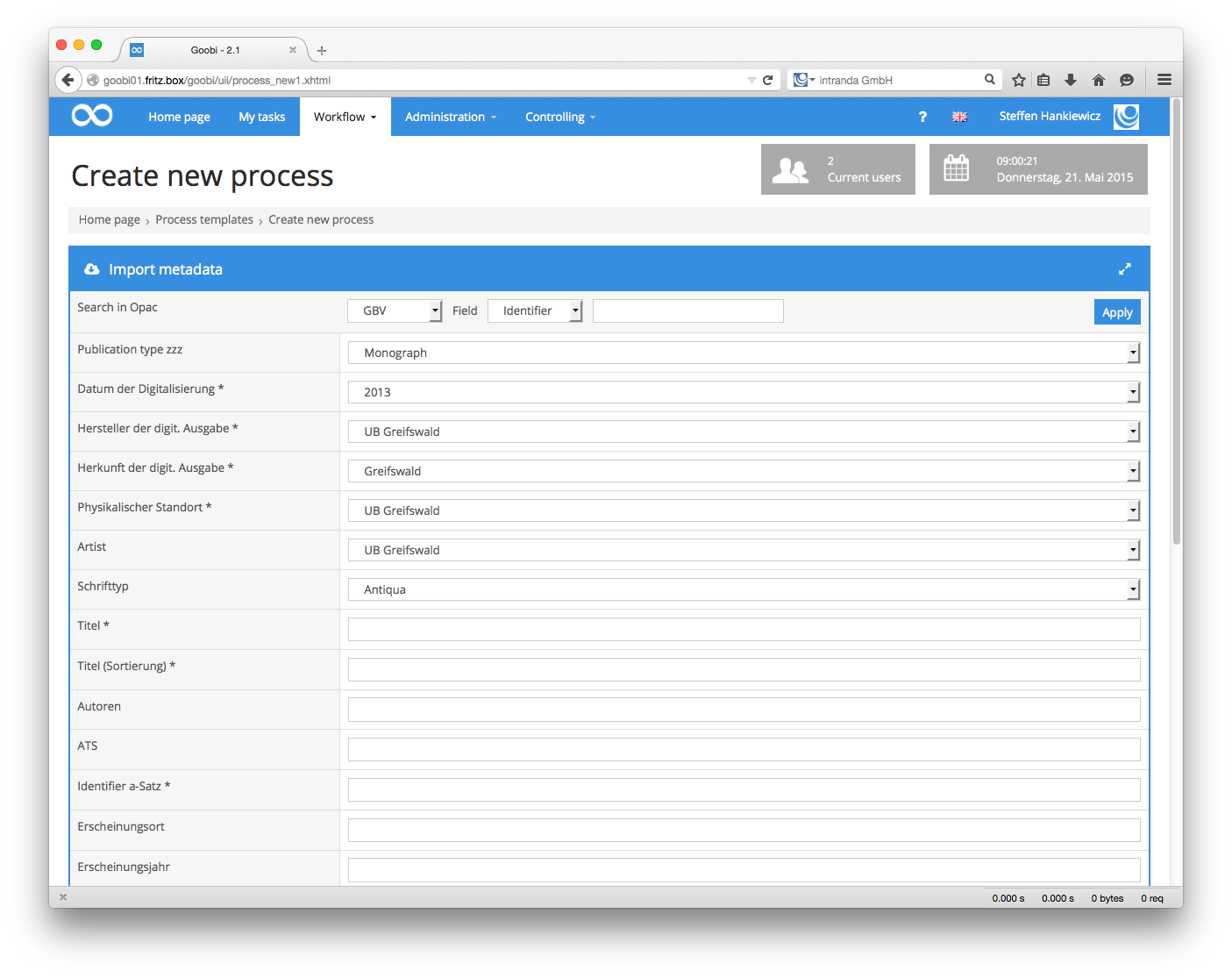

Goobi Production 2.1 – Improved configuration for OPAC imports

The field to be used for the request is now specified in the configuration file goobi_projects.xml. This instruction might read as follows:

<opac use="true">
    <catalogue searchfield="12">GBV</catalogue>

Configuration of drop-down or multi-select fields in the ‘Create new process’ box

As well as the selection lists included in previous versions, the ‘Create new process’ box in version 2.1 allowed users to define drop-down lists. By contrast with the selection lists, the first item in the drop-down list is pre-selected.

Automatic hiding of selection fields in the ‘Create new process’ box

When creating new processes in earlier versions of Goobi, all the configured fields were displayed at all times. With version 2.1, they are shown dynamically in response to the selection made by the user. Selection fields for which only one value can be selected and which therefore do not require user interaction are automatically hidden. This typically involves values which have to be defined for registration in portals such as the ZVDD and which are therefore pre-selected.

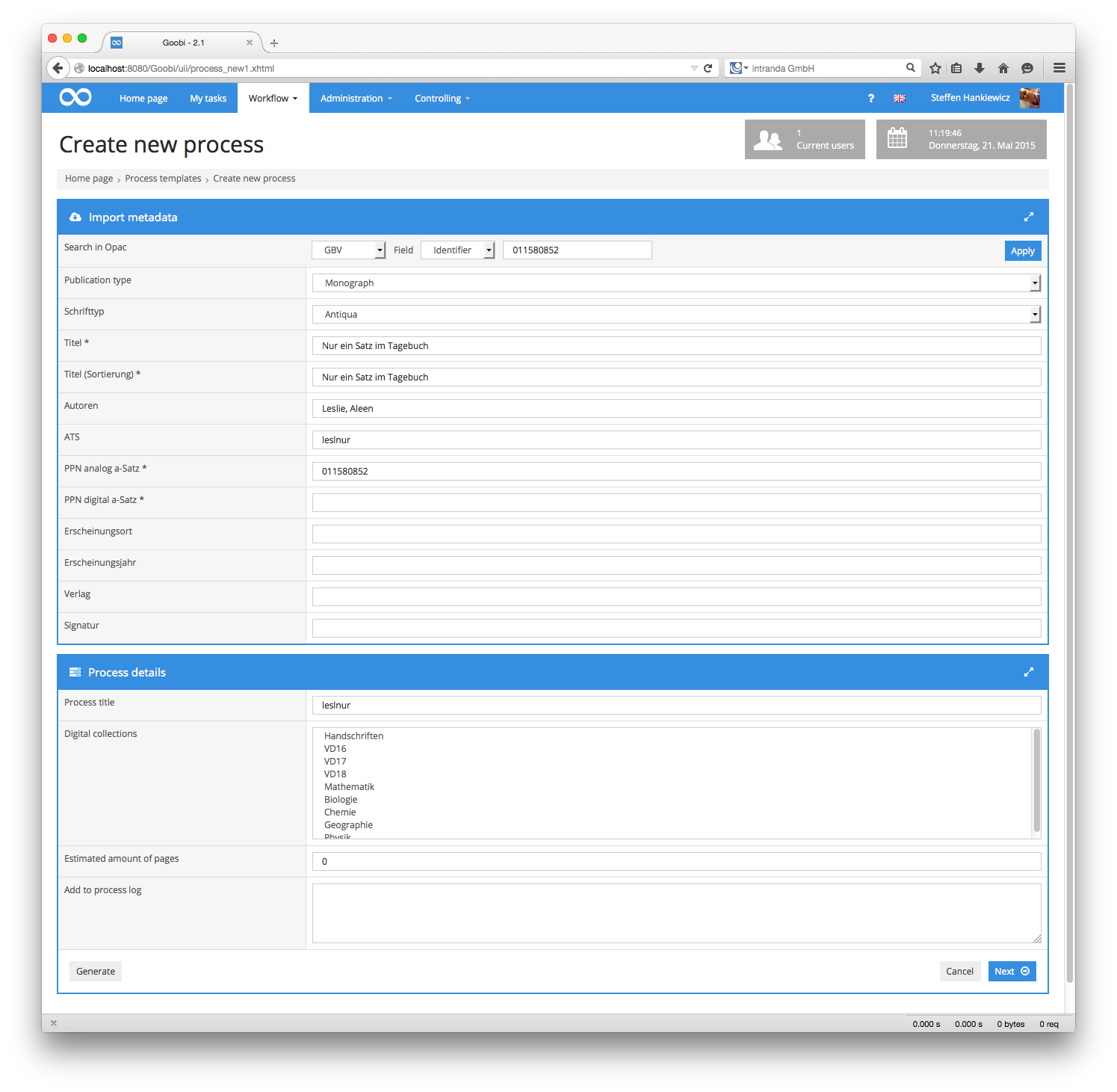

Goobi Production 2.1 – Drop-down and multi-select fields with one value now hidden by default.

Initially, some other less frequently used fields are also hidden (e.g. TIFF header information), as these are rarely changed manually. These fields can of course be displayed and edited at any time via the user interface.

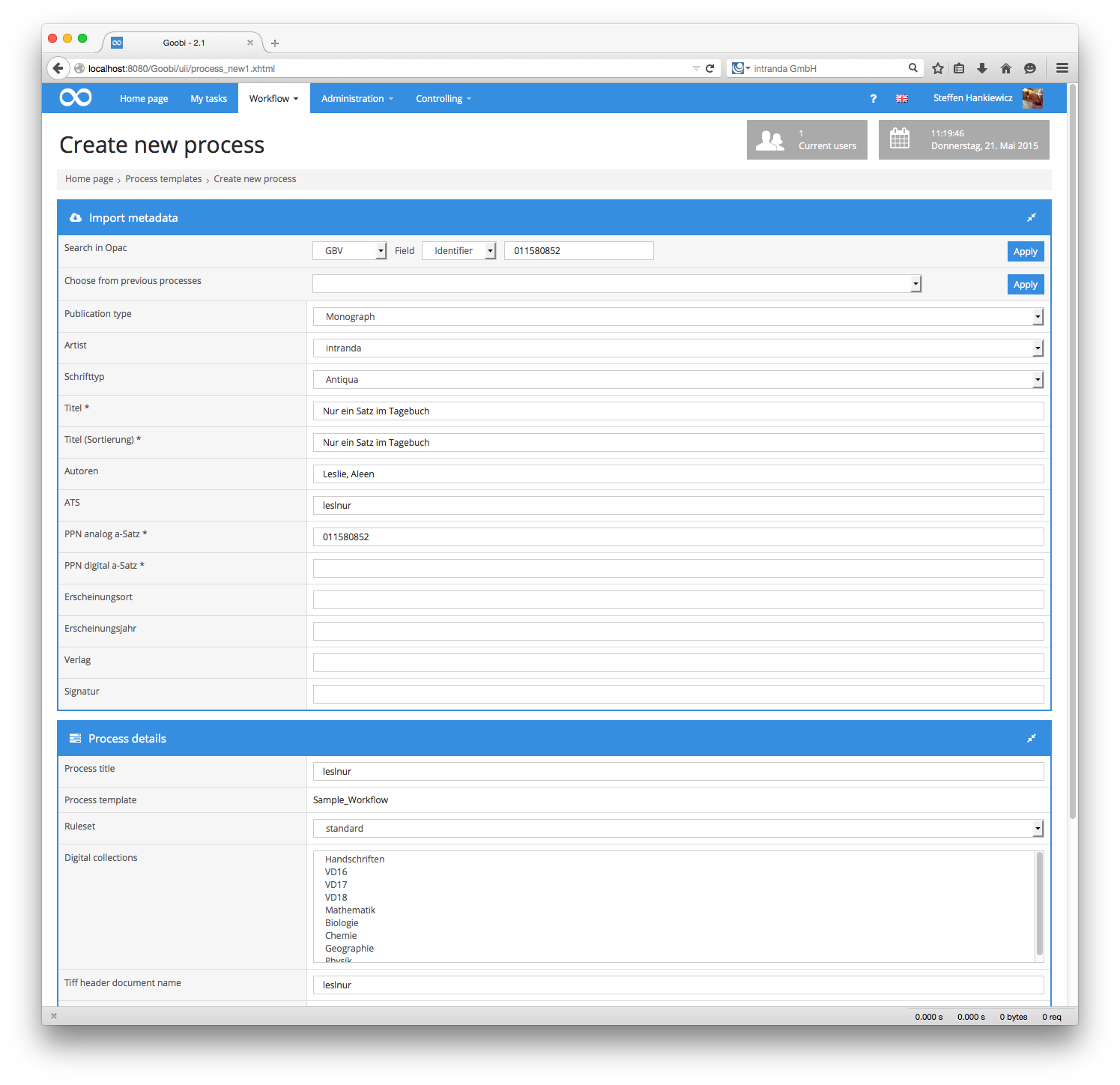

Goobi Production 2.1 – Tiff header fields and ruleset selection hidden


Improved metadata search performance

Goobi’s advanced search functionality was again massively overhauled in version 2.1. On top of the changes made in version 2.0, the search dialogue now included options to search the content of METS files and other metadata. In order to make the process of searching information mainly available in XML format as user-friendly as possible, the search form was again revised and made more flexible. At the same time, we made improvements to search indexing. This allows for highly efficient searching, even where the volume of data involved is very large.

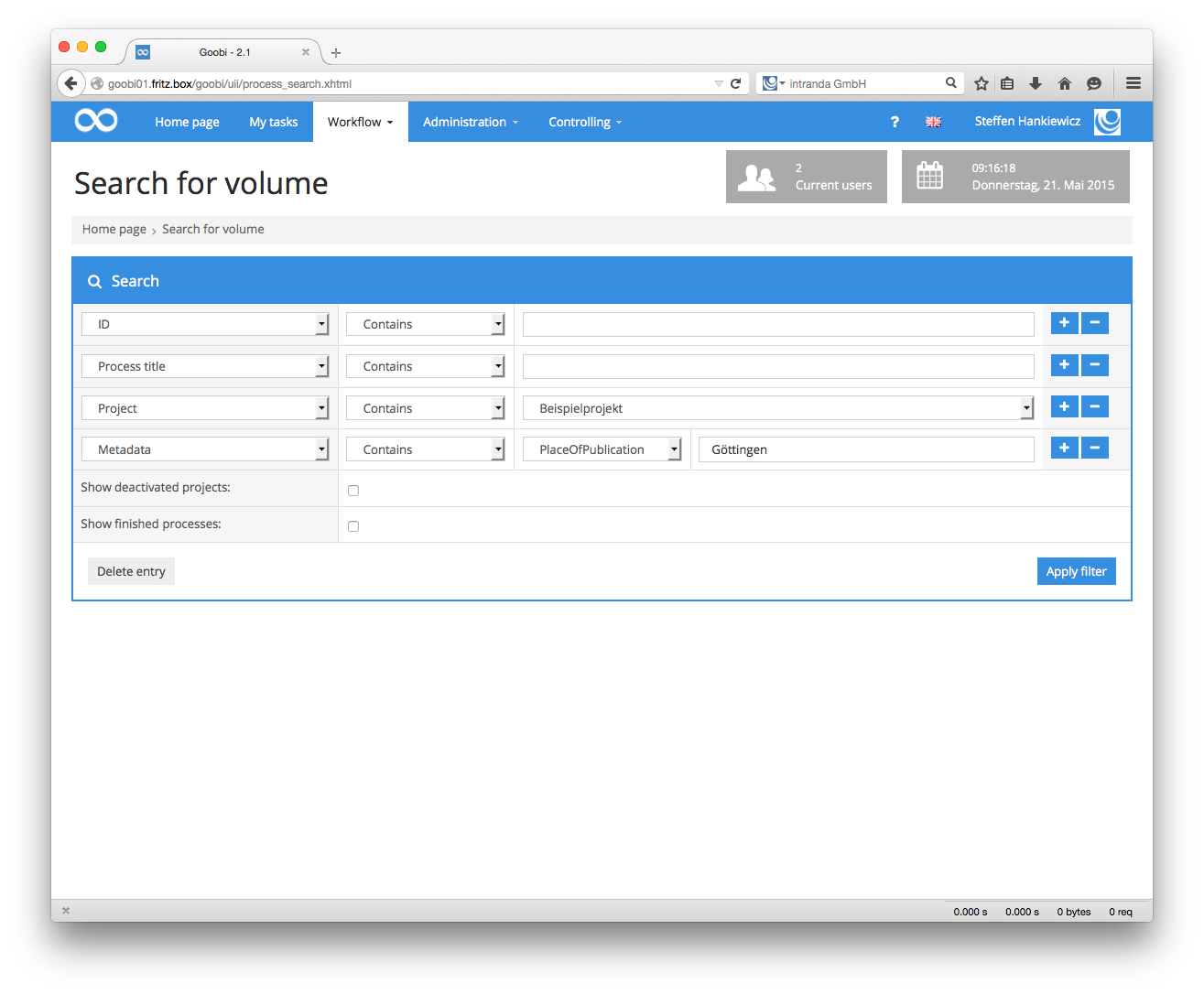

Goobi Production 2.1 – Extended metadata searches within METS files

Searching the process log

In version 2.1, the extended search dialogue box came with an option to search within the process log field. This meant that process notes added by users when working can now be located at any time, even if the number of processes involved is very large.

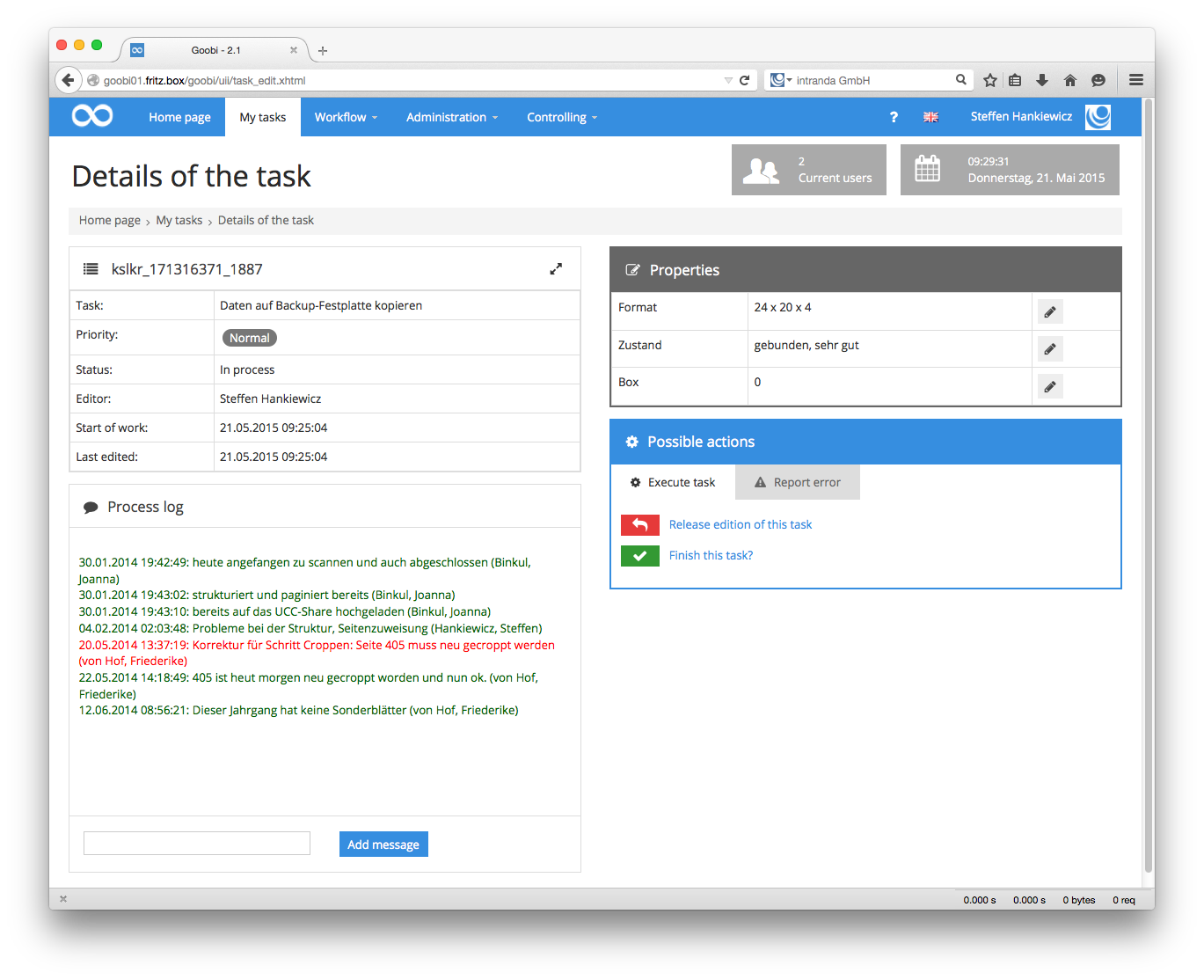

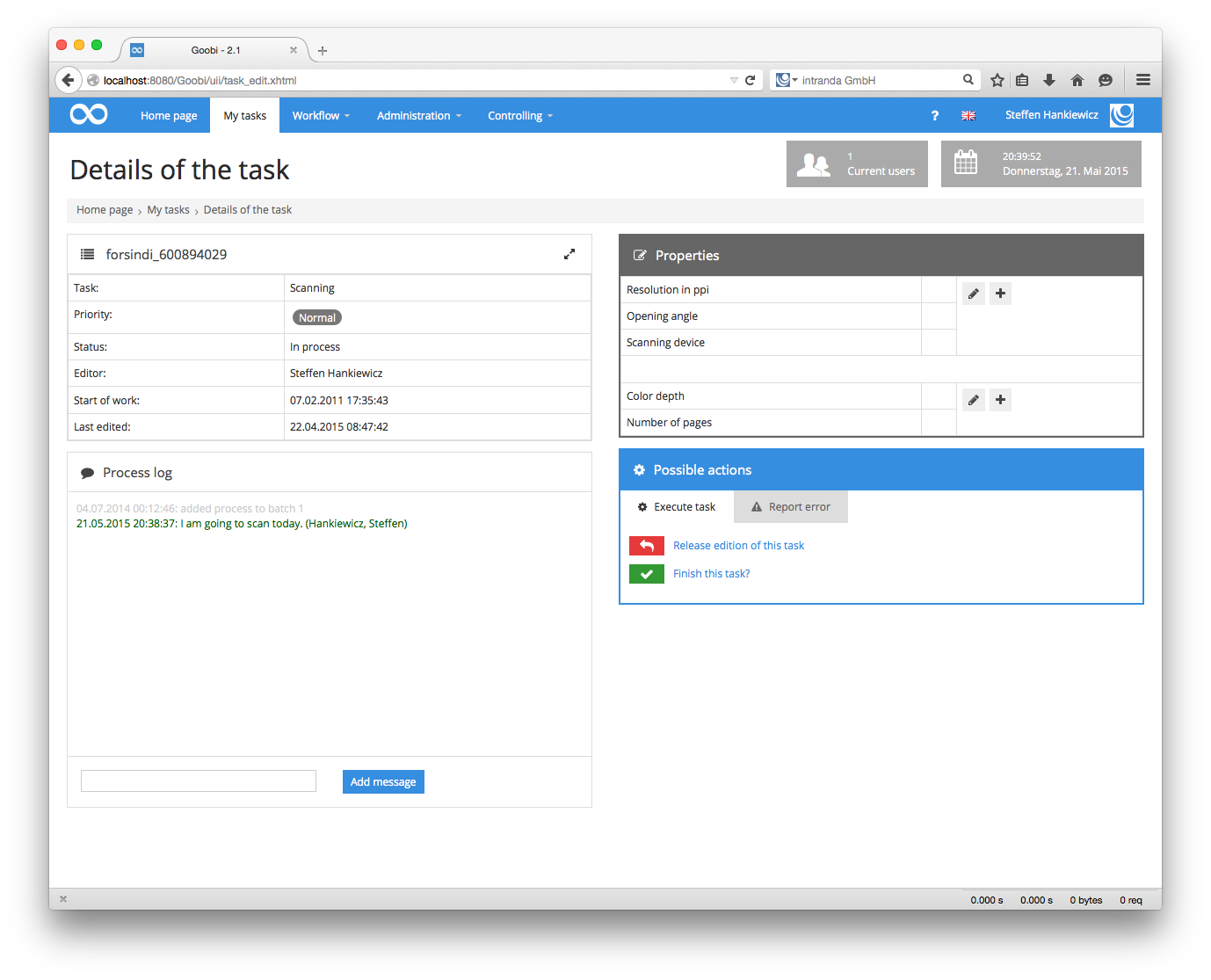

Goobi Production 2.1 – Option to add notes for each process in the process log

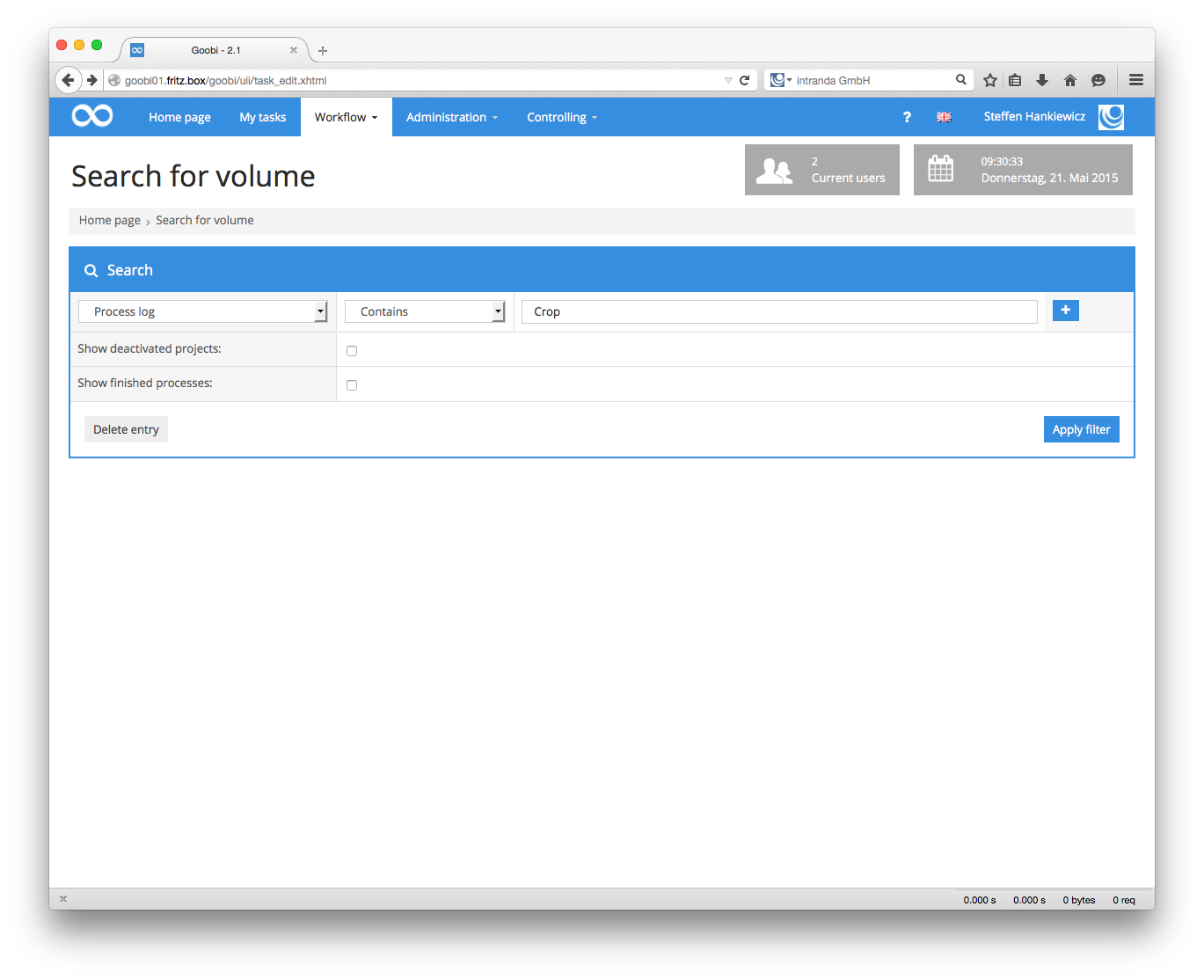

Goobi Production 2.1 – Searching the process log for user notes or external system messages

Dynamic downloading of search results

Version 2.1 greatly extended the range of available functions for saving search results. Instead of generating a fixed list of columns in the form of an Excel file, it is now possible to predefine exactly which information is to be contained in the export file. Target content can also be exported from the METS file. Before saving, users can also select the export format from one of the options currently available:

  • Adobe Acrobat – PDF
  • Microsoft Excel – XLS
  • Microsoft Word – DOC
  • Rich Text Format – RTF

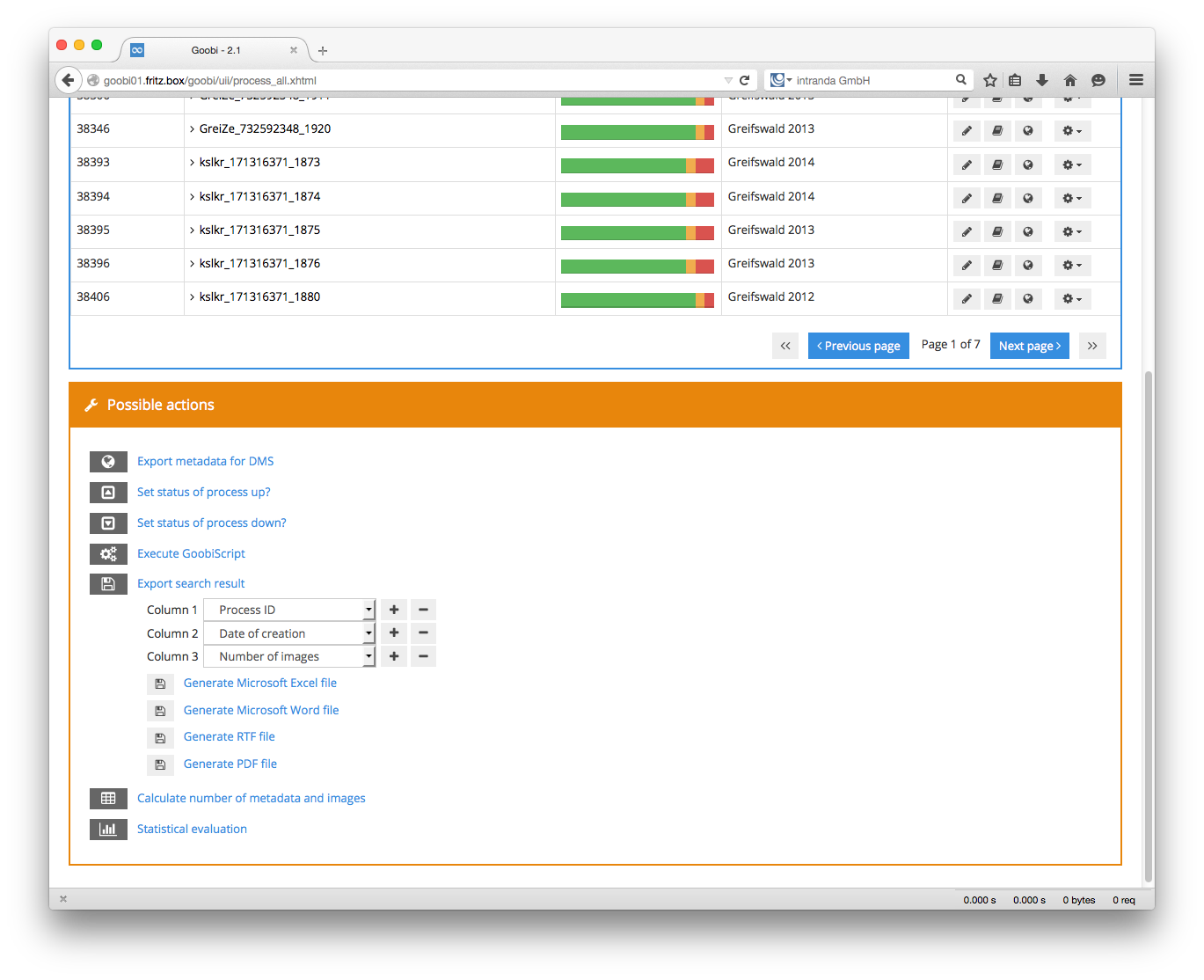

Goobi Production 2.1 – Saving hitlists of processes including METS file data

Workflow steps

New workflow status overview within accepted tasks

In order to give individual users a clearer picture of the overall workflow for the current process, version 2.1 came with an option to display (in My tasks) an overview of the entire workflow showing all completed and outstanding workflow steps.

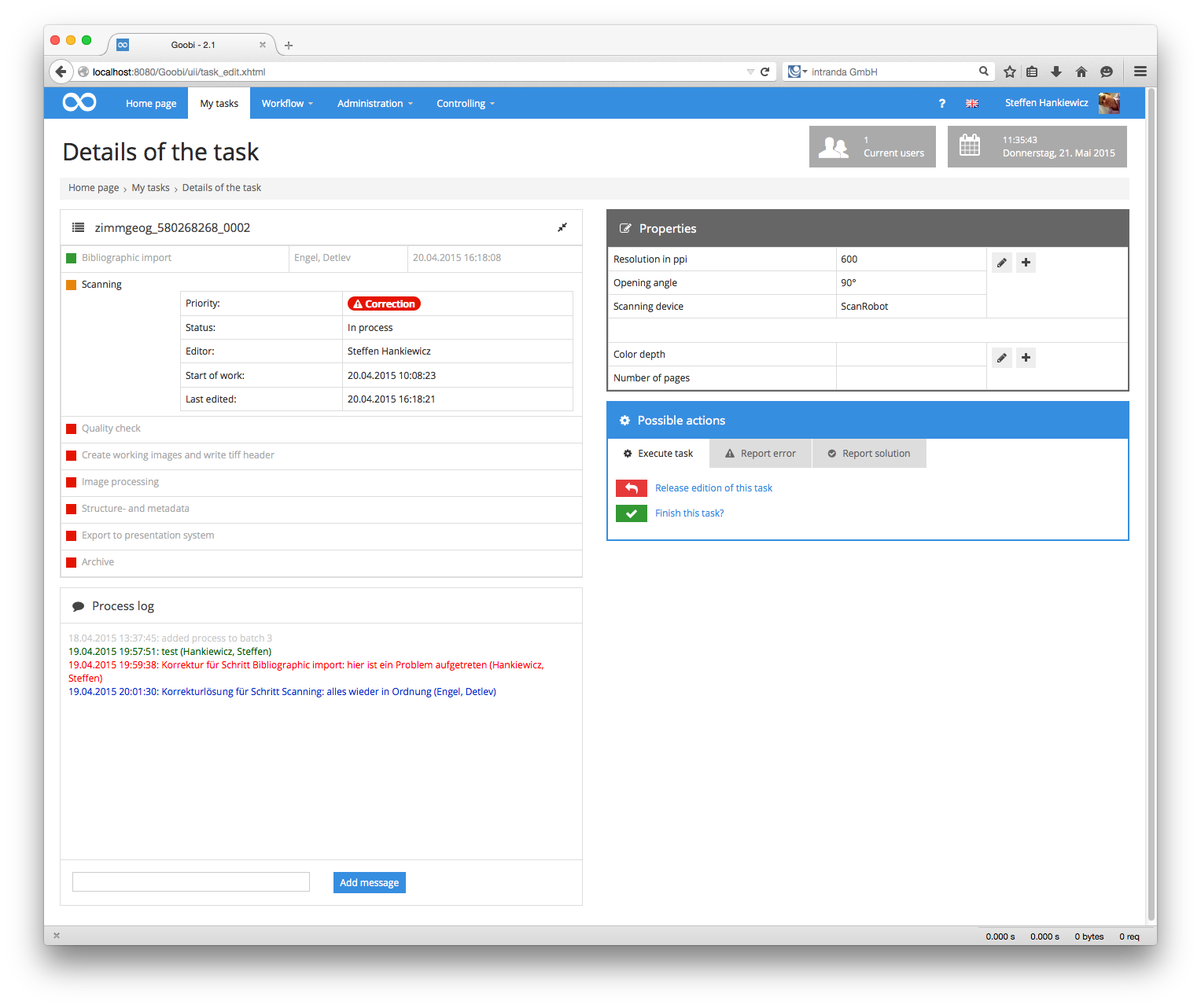

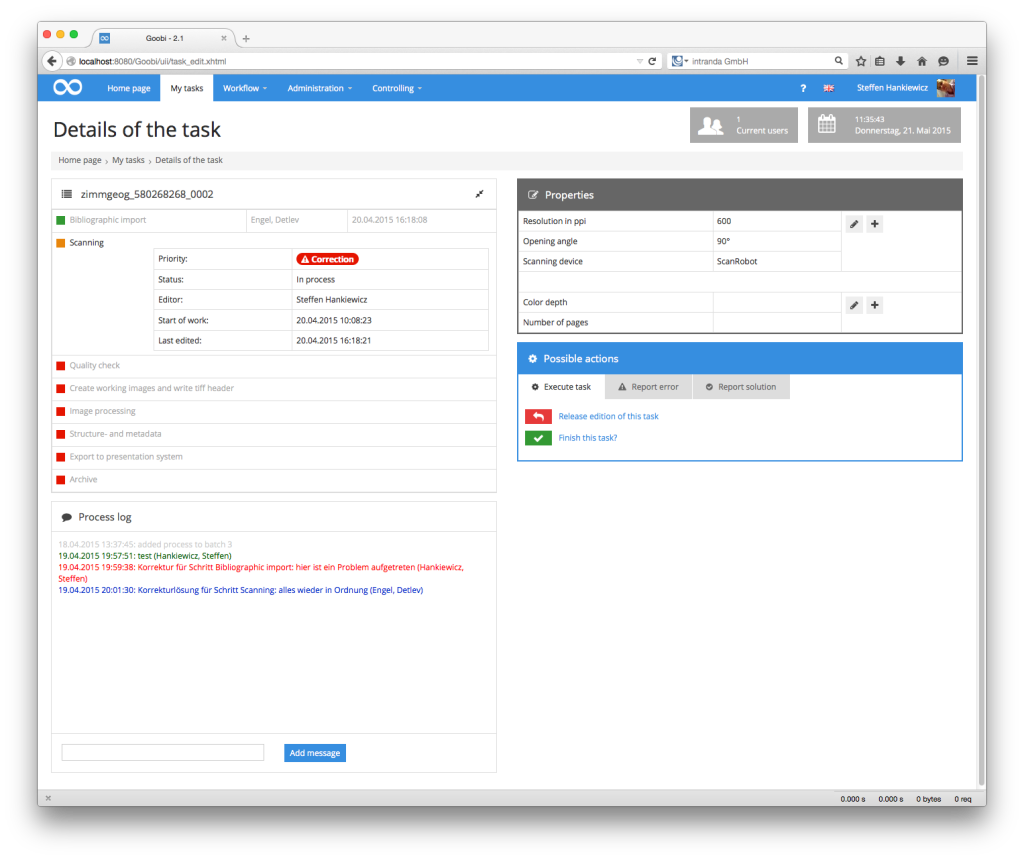

Goobi Production 2.1 - Digitisation process workflow now viewable while processing tasks

Enhanced performance when using mass download and mass upload functions

Goobi’s mass download and process allocation functions were significantly improved in version 2.1. The previous time-consuming checking routines in the file system were replaced by a smarter check on the directory analysis. This led to a considerable improvement in terms of speed when many Goobi processes need to be worked on simultaneously, especially when those processes contain a large volume of data.

Editing metadata using the METS Editor

New default type for displaying metadata in the METS Editor

The default method for displaying metadata fields in the Goobi METS Editor was replaced by a more compact and user-friendly view. Rather than the previous default value, unconfigured metadata were shown as a simple input field instead of a text area. As a result, metadata such as language, publishing location and shelf mark are displayed as a one-line input field, thus significantly reducing the need for scrolling.

Goobi Production 2.1 – Metadata fields in Goobi METS Editor displayed in more compact form

The generally small number of fields that need to be displayed in a bigger format (e.g. main title and description) can of course be configured as a large input field containing several lines.

Faster loading/saving of large METS files

The reading and writing of METS files was revised in version 2.1 to optimise reading performance in the case of very large processes. This was achieved through ruleset caching. As a result, if changes are made to a ruleset while Goobi is running, the application has to be instructed by means of a GoobiScript to read in its rulesets once again.

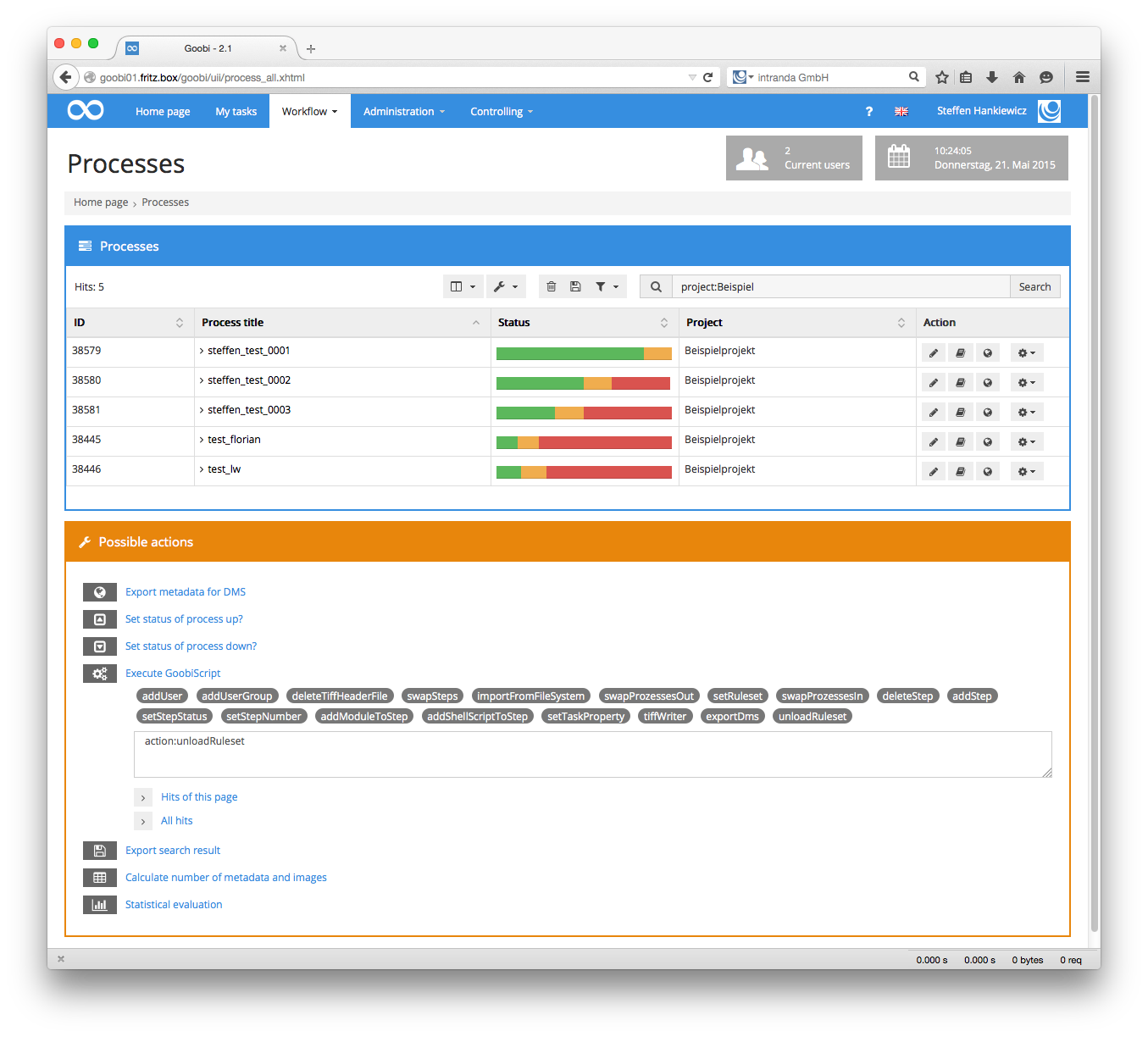

Goobi Production 2.1 – Rulesets for metadata now cached with option to reload for all workflows using GoobiScript

Configurable authority databases

Goobi’s METS Editor can now work with other authority databases in addition to the GND common authority database (Gemeinsame Normdatenbank). This simply involves specifying all the available authority databases in the configuration file goobi_normdata.xml. If this file is missing, only the GND will be available.

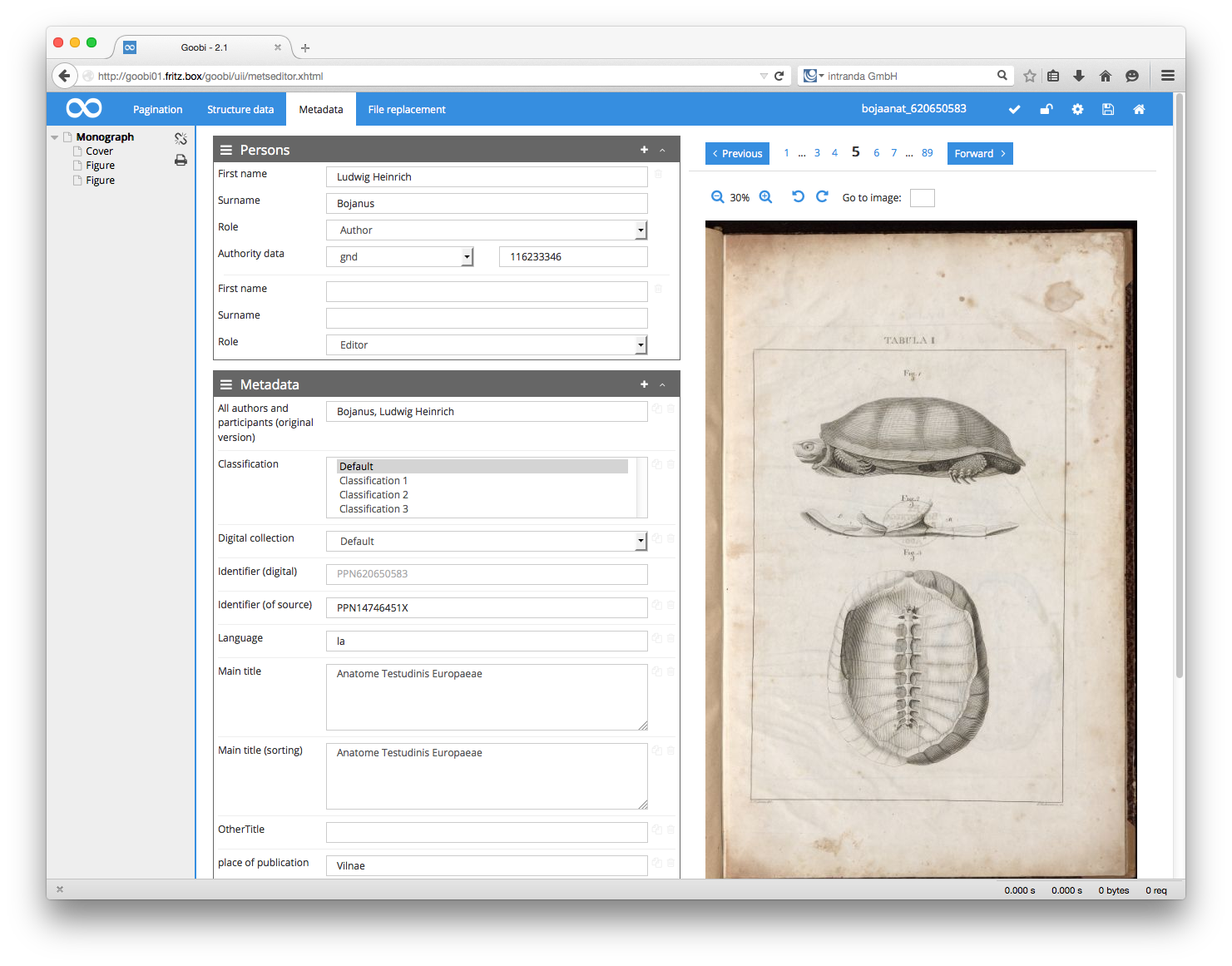

Goobi Production 2.1 – Additional authority databases now configurable alongside GND

Shortcut for saving in the METS Editor

Previous versions of Goobi’s METS Editor had long featured various key combinations to help users navigate between the displayed images. Version 2.1 introduced a new key combination for saving. METS files can now be saved at any point during data input simply by pressing the keys [Control] + [Shift] + [Enter].

Entering metadata while generating structure elements

One of the biggest changes introduced by Goobi version 2.1 was the option to enter metadata while generating the structure hierarchy. Whereas before it was necessary to first create the structure elements individually and then allocate metadata separately for each structure element, this task is now performed at the same time in a single workflow step within the new input dialogue box. This involves a dynamic procedure whereby all the metadata fields or person types configured in the ruleset as default fields for the selected structure type are displayed as input fields within the user interface when selecting the structure element to be added. For a given chapter, for example, it is possible to allocate an author and a main title immediately, whereas when adding an illustration all that might be required is a description. As the correct image is generally displayed at the same time when recording the structure, metadata can simply be read off from the correct side and entered straight away while recording the data.

Goobi Production 2.1 – Option to enter metadata at the same time along with structure data

By specifying in the ruleset the default fields to be displayed in the METS Editor, you can save around 50 percent of your working time for indexing.

More flexible page allocation when generating new structure elements

Version 2.1 introduced one further improvement that makes page allocation for newly generated structure elements more efficient and reduces unnecessary switching between images. As well as an option to allocate the currently displayed image to the structure element being generated, there are two more buttons that allow you to add the preceding or the following image.

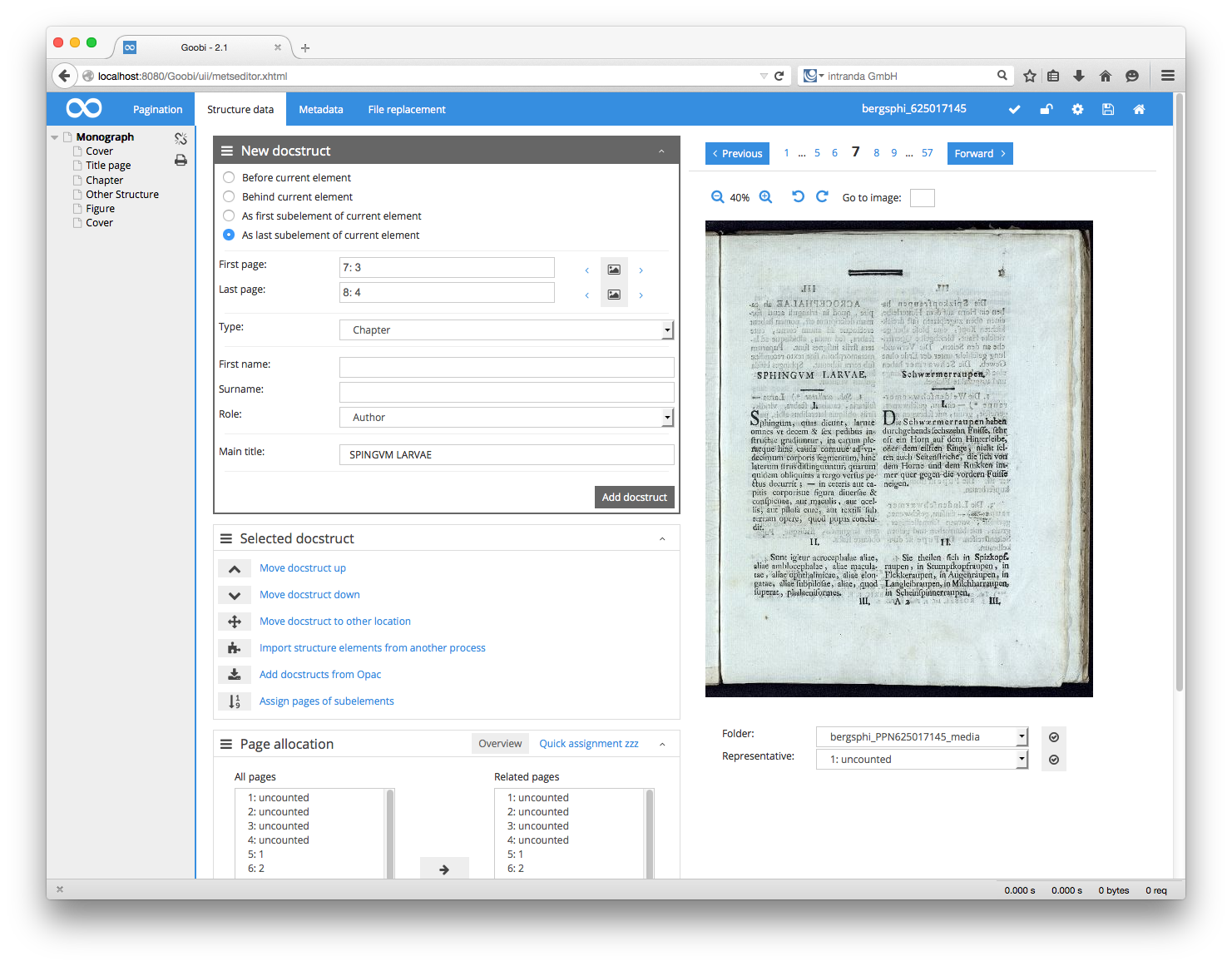

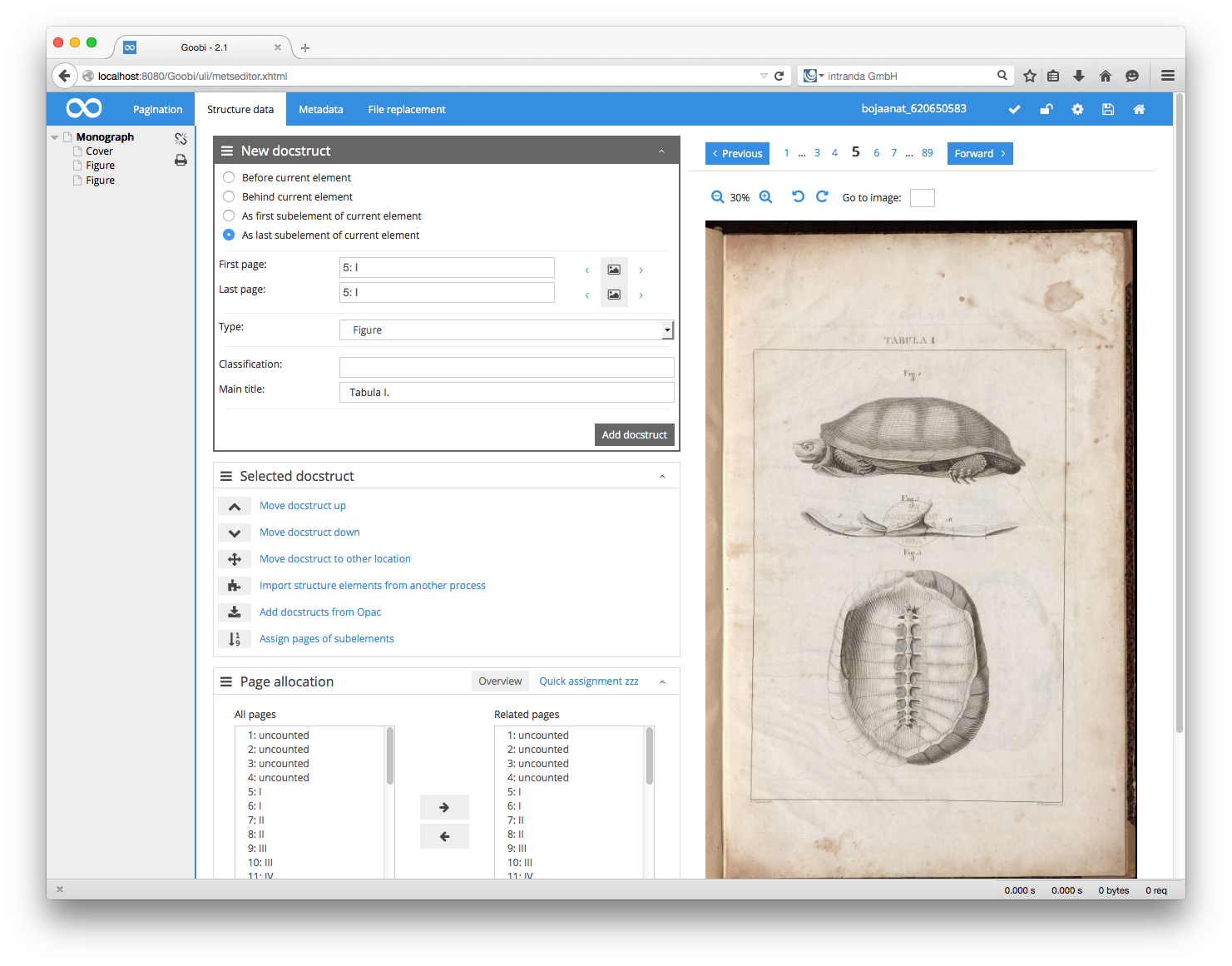

Goobi Production 2.1 - Flexible page allocation during structure data entry in the METS Editor

This means that any pages that were accidentally overlooked can be allocated when searching for the end of a structure element without having to turn back.

METS Editor extended to provide dynamic interaction with the server

In version 2.1, Ajax technology was introduced in many areas of the METS Editor for communications between the user’s own browser and Goobi as a server application. This means that numerous changes made by users during the editing process can be reported immediately to Goobi so that the application responds even more quickly.

Editing metadata for the physical structure hierarchy

With previous versions of Goobi it was possible to edit metadata in the METS Editor only for the logical area within the METS file. Beginning with version 2.1, users can now edit the physical structure hierarchy in the METS file. This means it is now possible, for example, to enter individual metadata for each image file or access and modify information belonging to the ‘BoundBook’ as generally required when saving the shelf mark.

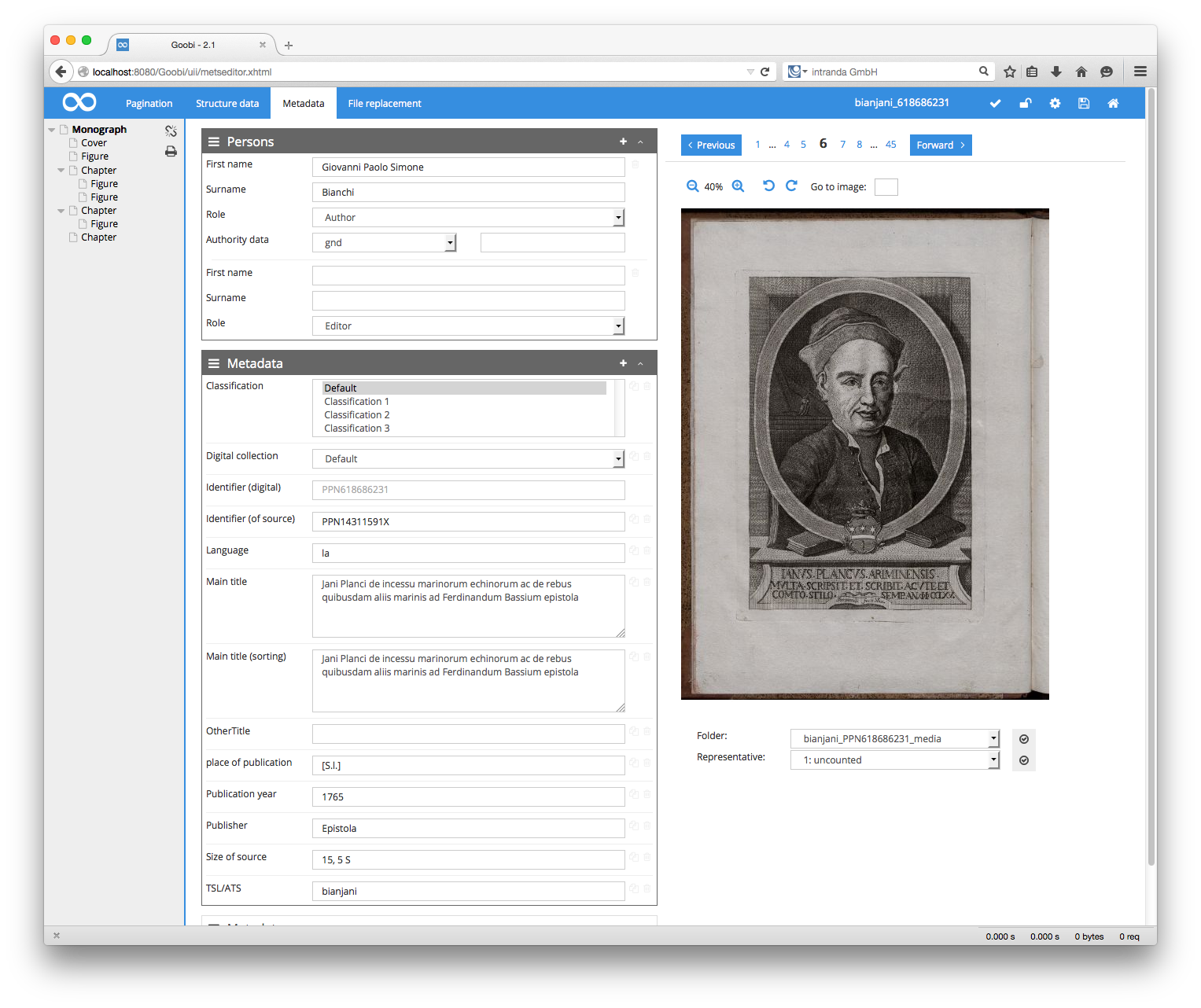

Goobi Production 2.1 – Metadata for logical elements within the METS file

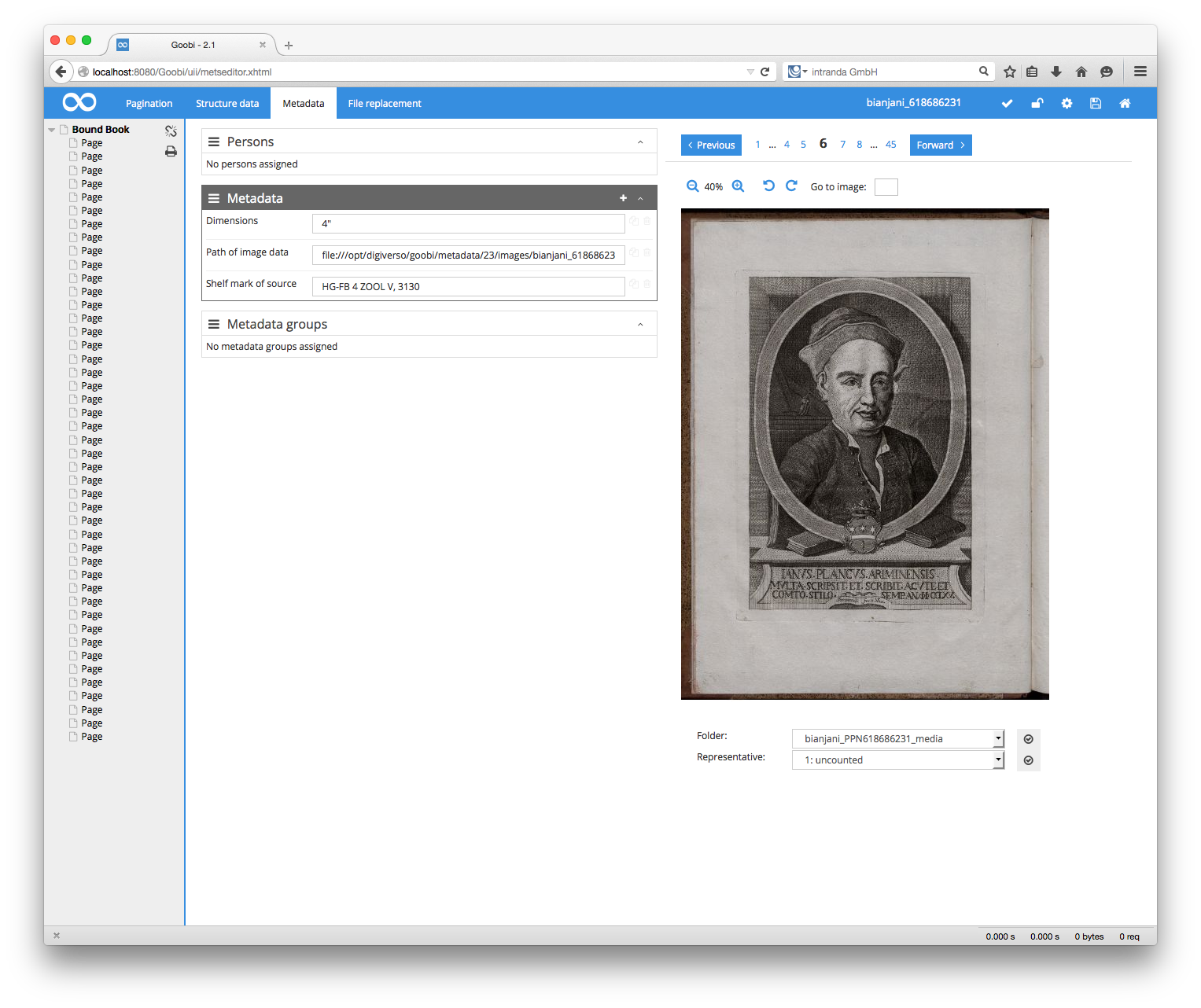

Goobi Production 2.1 - Metadata for physical elements within the METS file

Problems displaying OCR results in the METS Editor resolved

Version 2.1 improved compatibility with other character sets when presenting OCR results in the METS Editor. As a result, Cyrillic and Arabic characters can now be shown in the OCR results.

Reset pagination

In version 2.1, a new function in the METS Editor allowed users to completely delete an existing pagination and enter a new one based on the file names in the file system. This is advisable in the case of newly added image files in the image directory where those images are to be moved a long way within the order and the order is identifiable using the filenames.

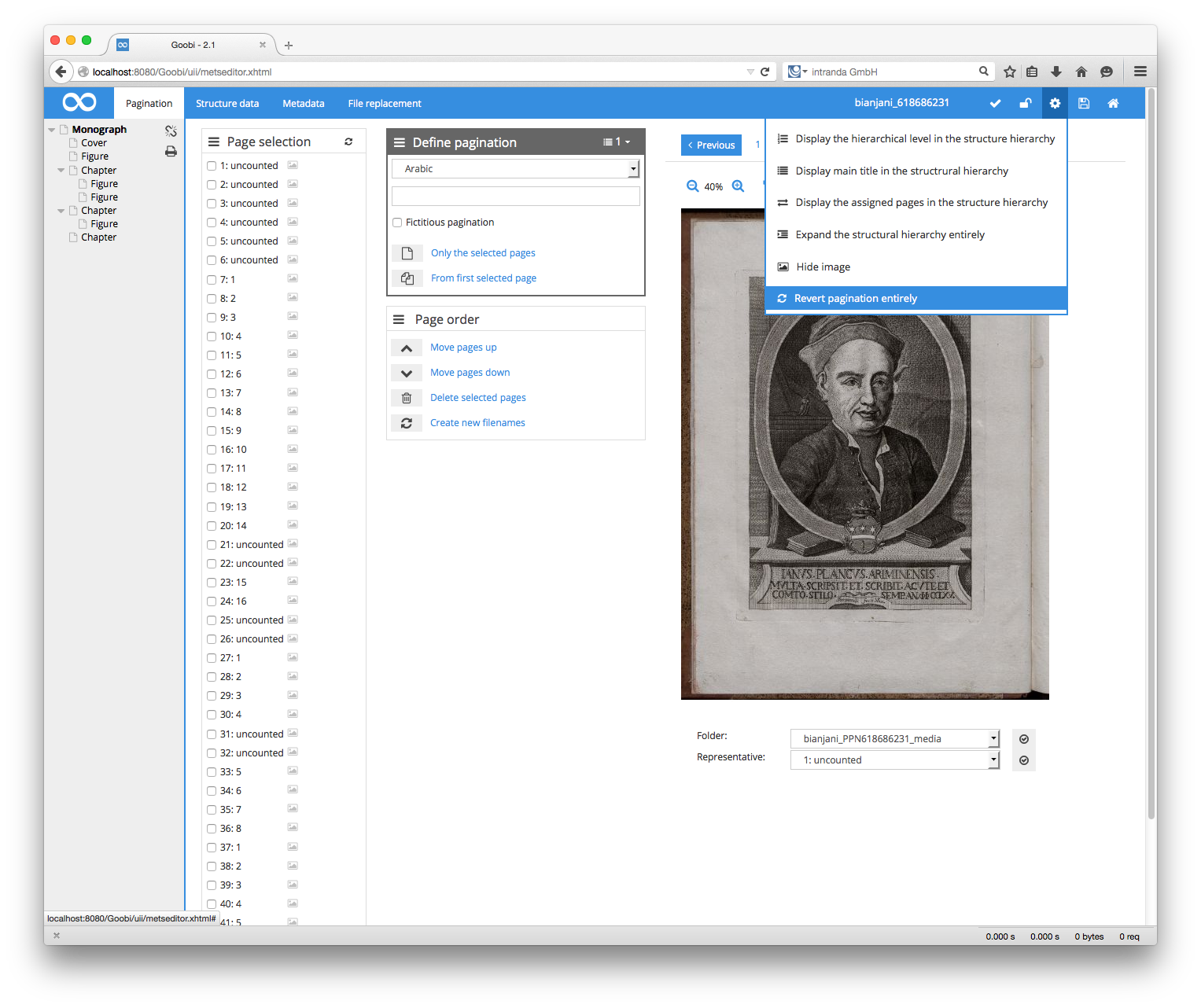

Goobi Production 2.1 – Complete pagination reset within METS Editor

Image links right next to page list in pagination area

In order to simplify pagination, a link is now shown for each page in the pagination entry area. This makes it possible to load and display the selected page immediately, thus allowing users to check individual pages straight away while (or after) entering page numbers in Goobi.


New statistics available via the plugin interface

Goobi has long been able to generate a wide range of statistical data that help users to present and analyse workflow, throughput and other information in diagrammatic or tabular form.

Goobi Production 2.1 - Flexible and tailored statistics available as plugins

However, Goobi users often want specific functions within the statistics that are not required and therefore not available in every organisation. For this reason, version 2.1 was developed with a new plugin interface that allows individual statistics to be integrated as plugins. By way of example, project-specific information can be shown in the form of statistics that are only really needed by a single Goobi user. Thanks to the latest presentation techniques, it is now possible to draw on a wide variety of statistical formats to display and compare data. Version 2.1 also introduced dedicated support for data exports in Excel or PDF file format from any statistics plugin.

Dynamic dashboards via the new plugin interface

In earlier versions of Goobi the start page merely served as a login area. In order to make it more user-friendly and informative while remaining highly flexible, version 2.1 was equipped with a new interface for the dashboard.

Individual dashboards provide overview of digitisation workflows and other data

Different organisations can now implement their own dashboard plugins. These might contain information about accepted tasks or the most recent exports to the intranda viewer. They can also be used to monitor other services and display this status directly. The structure of the start page is determined by the organisation, which can use it, for example, as a way of integrating local information.

Goobi Production 2.1 – Tailored and informative dashboards as start pages

Image quality assurance available as plugin

To simplify the task of controlling image quality, version 2.1 was developed with a plugin that allows users to display images within a workflow step. Using the plugin, it is possible carry out visual checks on images via Goobi’s web interface without the need for access to a network drive. This makes the checking process very straightforward and independent of the network’s firewall settings.

Goobi Production 2.1 – Quality control plugin for images produced in the digitisation workflow

Validation plugins for technical metadata on images

In order to validate image quality, version 2.1 featured new plugins for analysing technical data. Alongside existing checks to ensure that files are correctly named in accordance with complex regular terms depending on the workflow, the new validation plugins analyse image quality using the application JHove. The validation process can check colour depth, resolution and other technical data automatically within the workflow and send a report to Goobi.

LayoutWizzard as plugin to deskew and crop images

Version 2.1 introduced a series of image optimisation plugins to improve the processing and preparation of digitised material. As well as deskewing and cropping functions, these included new automated book spine detection systems. Alongside the master image file, users can now generate compressed derivatives that have been enhanced for online presentations, PDF generation or OCR purposes by fully removing any black edges or central spines.

Goobi Production 2.1 - LayoutWizzard now available as plugin for automated image optimisation

Goobi Production 2.1 - Automatic book spine detection with LayoutWizzard

Goobi Production 2.1 – Perfect cropping achievable by detecting black edges after deskewing

Plugin for enriching structure elements with authority data

Goobi version 2.1 can import a wide range of authority data when performing a catalogue request. Although the catalogues do not provide information for the allocation of authority data to the structure elements generated during metadata indexing, this can even be done retrospectively for all existing Goobi processes using a plugin designed to enrich the metadata with identifiers from the GND common authority database (Gemeinsame Normdatenbank).

Goobi Production 2.1 – Enriching metadata with the authority database plugin

Technical infrastructure

Full encryption of communication with Goobi

Goobi version 2.1 allowed full encryption of communications between the browser and Goobi. This involved correcting information within paths on some images, statistics and icons.

Support for IPv6

Version 2.1 introduced full support for IPv6 in communications between different services and Goobi’s WebAPI.

Support for proxy servers between Goobi and OPAC

For the first time, Goobi version 2.1 provided full support for communication via a proxy server. Thanks to this implementation, it is now possible to run a proxy server between the user and Goobi or between Goobi and another external application (e.g. a library catalogue or the OCR service) without affecting communication.

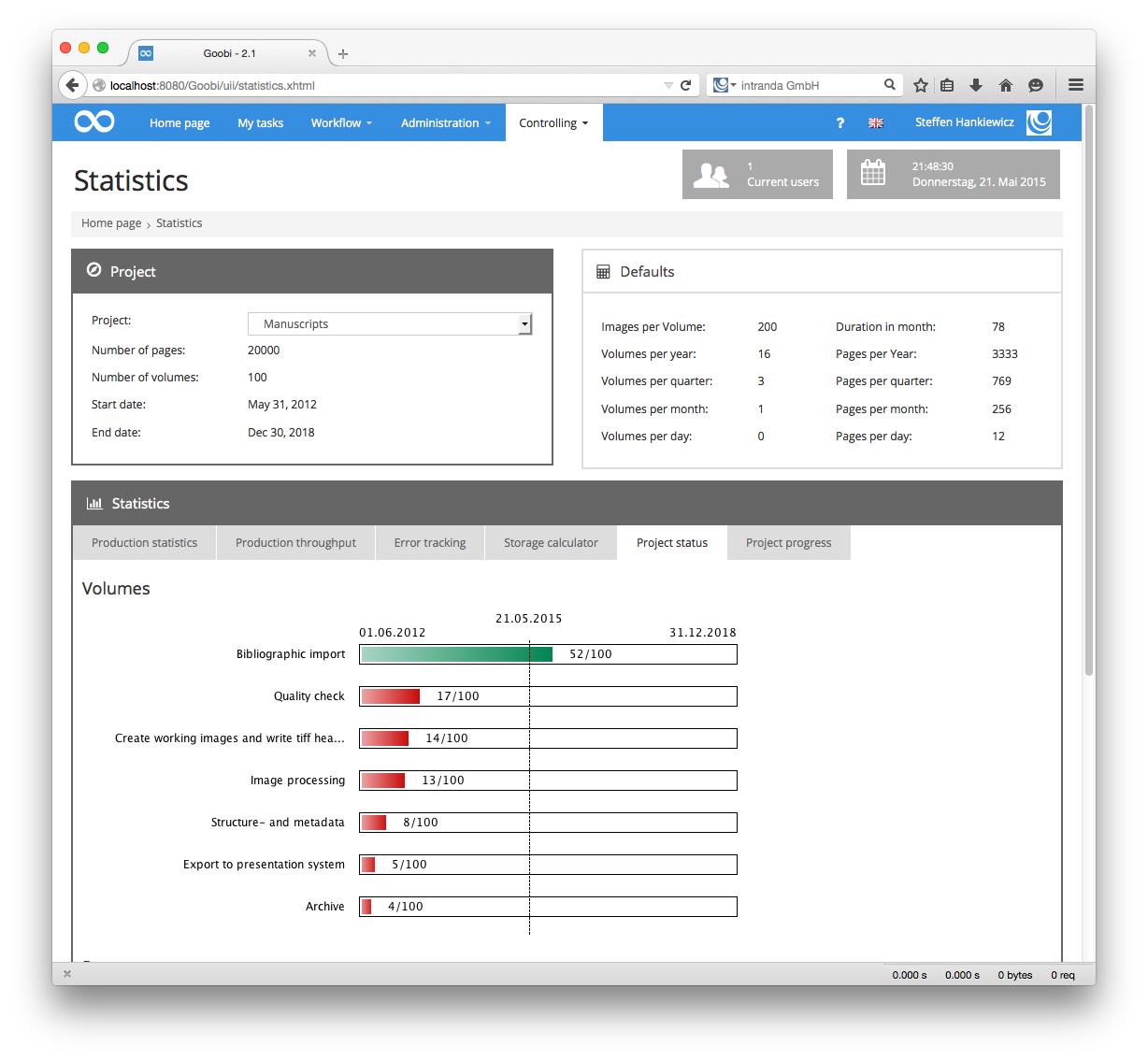

Errors in calculation and display of production throughput statistics resolved

Version 2.1 corrected a previous calculation error that had generated incorrect figures in the table of production throughput statistics.

Storing the email address

Version 2.1 allowed all users to store an email address in their user account. This email address can be used, for example, in time-consuming workflow step programs to notify the user when a task has been completed.

Configuration of metadata display in METS Editor now easier to maintain

For some years, previous versions of Goobi allowed users to fine-tune the way metadata are displayed in the METS Editor. The configuration file in version 2.1 was thoroughly restructured to make this much simpler. An example of the changes made in the file goobi_metadataDisplayRules.xml is given below.

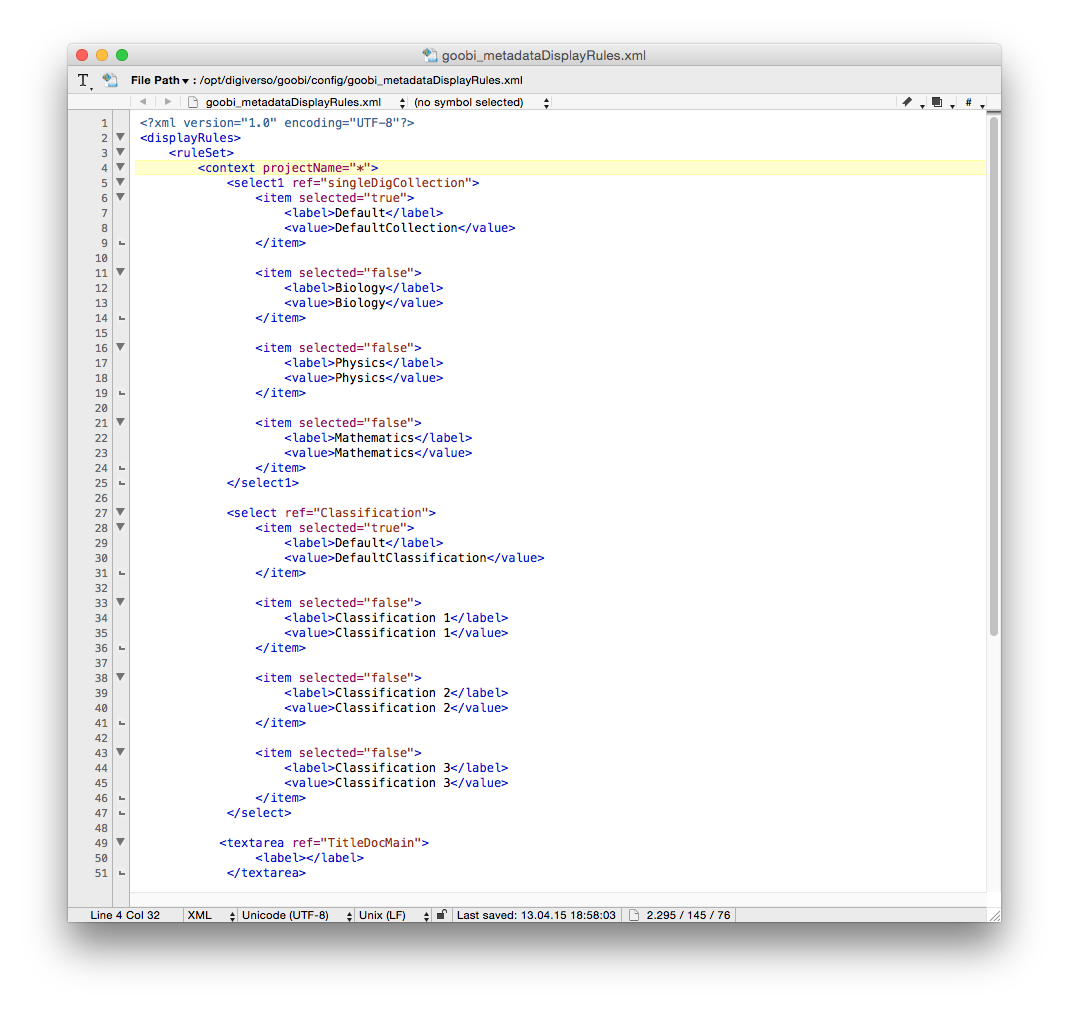

Goobi Production 2.1 - Configuration of the METS Editor

The changes make it much easier to modify the appearance of Goobi’s METS Editor for a large number of projects.

Error comparing process properties resolved

Version 2.1 resolved an error created when comparing process properties. The error had previously meant that some properties were not reliably duplicated.

Improved logging performance

The previous logging framework Log4j was replaced by chronicle. This delivered a massive improvement in performance when logging information. It also provided new options for greatly extended logging and allowed users to help determine what can be done to improve analysis in the event of error.

Revised translation methods

Goobi’s internal translation methods were revised in version 2.1. As a result, it is now possible to use any number of variables within individual blocks of text.

Further expansion of fully automated program code testing

The scope of the fully automated unit tests that check the source code and therefore help to maintain product quality and stability was again greatly expanded. For future versions, too, this will ensure there is no loss of the existing functionality already covered by tests.
